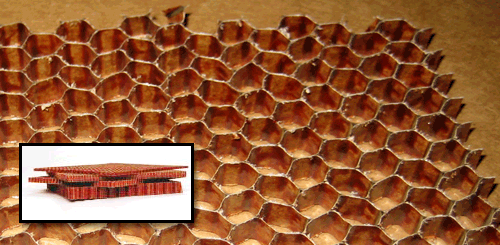

Honeycomb 1/8 Inch Thick 1/8 Inch Cells

AHN 7800 is an Commercial Grade Nomex honeycomb particularly suited for use where resistance to corrosive attack and moisture are important. This material exhibits good strength characteristics and is fire resistant. It is available in a variety of cell sizes and densities to suit most purposes. Typical applications include lightweight non-structural bulkheads for ships, joiner panels, shelters, antennas, and auto body panels. This material is not intended for aircraft or aerospace applications. This material also exhibits good thermal insulation properties and also has good dielectric properties. This honeycomb is easily machined, formed, and shaped and well suited to adhesive bonding. SHEET SIZE TOLERANCES Length (W) & Width (L): -0 +4 inches Thickness (T): +/- .006 up to 2.00 inches .010 to 4.00 inches .060 above 4.00 inches Product Designation Cell - Density Compressive Plate Shear Bare Stabilized L Direction W Direction Strength PSI Strength PSI Strength PSI Strength PSI Hexagonal Cell typ type typ typ AHN 7800 - 1/8 - 3.0 275 300 150 90 All tests are per MIL--STD--401B, at core thickness of .500". Typ indicates averages of typical production test results, actual results may be lower.
